WL-BPD450MA

450 MHz Dual-Balanced InGaAs Low Noise Photodetector

  Datasheet
450 MHz Dual-Balanced InGaAs Low Noise Photodetector
  In stock

The BPD450MA is an AC-coupled high-speed dual-balanced InGaAs photoreceiver. It features a high transimpedance gain, very low noise and a -3 dB bandwidth of 450 MHz.

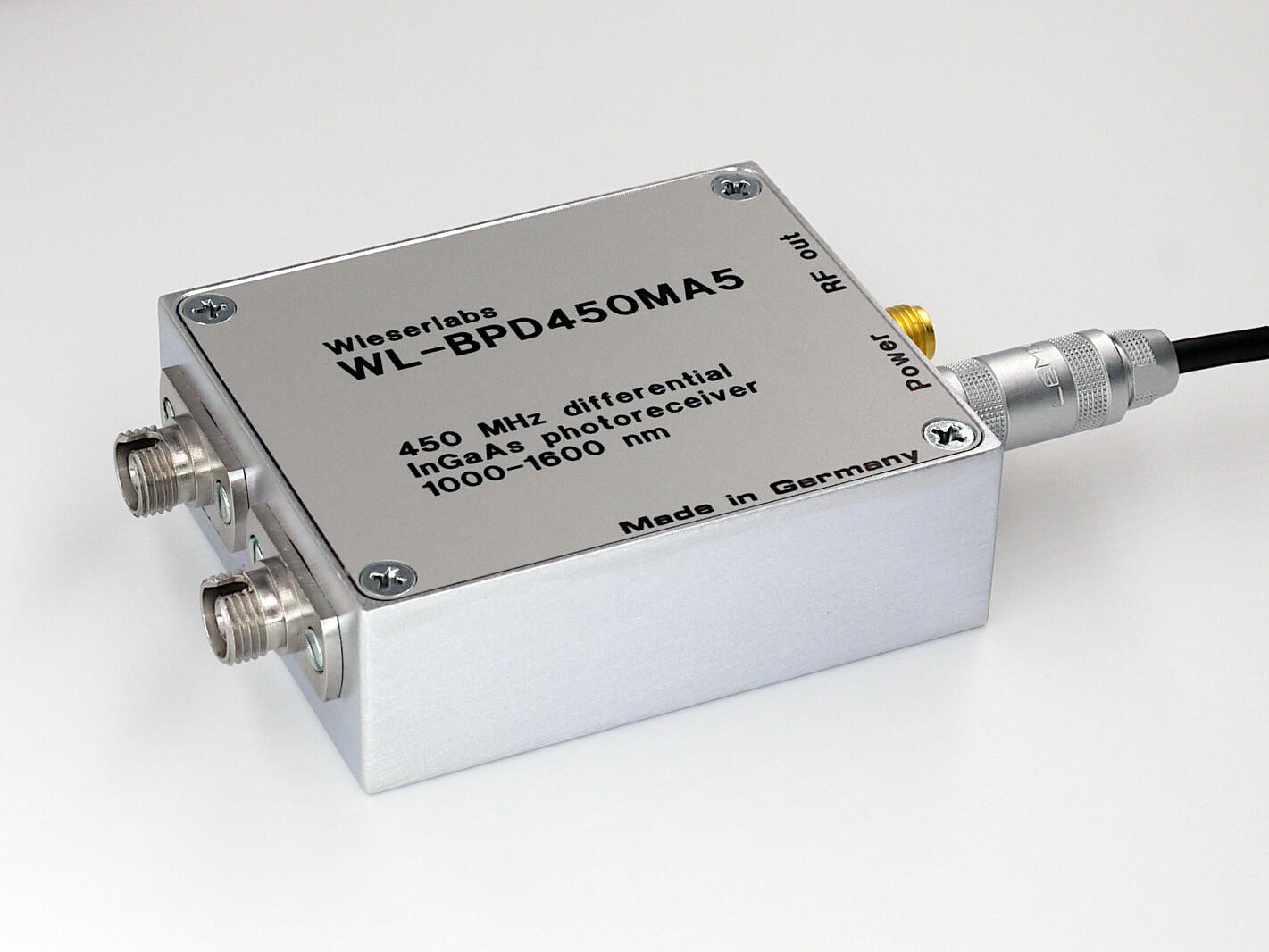

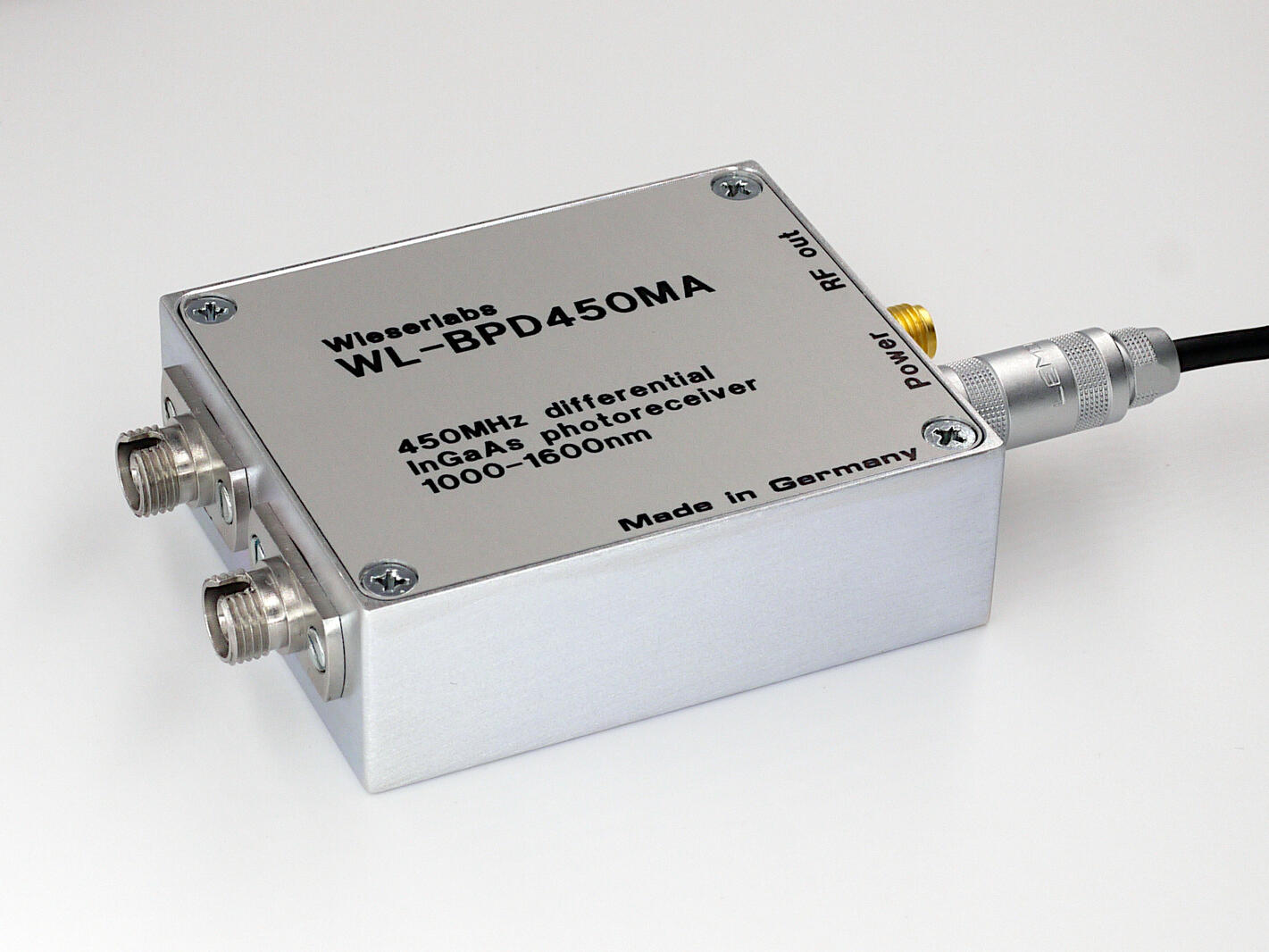

The BPD450MA comes in a rugged aluminum case with two FC fiber receptables and a 50 Ω coupled SMA output. It operates from a single 11-15 V DC supply.

OEM versions without a case are available upon request.

Features

  • Bandwidth: 300 kHz to 450 MHz
  • High transimpedance gain: 3500 V/W (1550 nm)
  • Low noise: Typically -130 dBm/Hz noise level
    NEP 20 pW/sqrt(Hz) (at 1550 nm)
  • Wavelength range: 1000 nm to 1700 nm
  • 11-16 V single supply
  • Input: FC fiber receptables
  • Output: 50 Ω coupled SMA plug
  • Damage threshold: >15 mW

Main Applications

  • Interferometry
  • Swept-Source OCT imaging
  • LIDAR
  • Single-ended use possible as well
