4-Channel 600 MHz Dual-Balanced InGaAs Low Noise Photodetector

  In stock

The BPD600MA-QUAD is an AC-coupled high-speed dual-balanced InGaAs photoreceiver. It houses 4 independent differential channels in a single space-saving case. Due to its high transimpedance gain, its very low noise, and its bandwidth of 600 MHz, it is ideally suited for multi-channel interferometry or LIDAR systems.

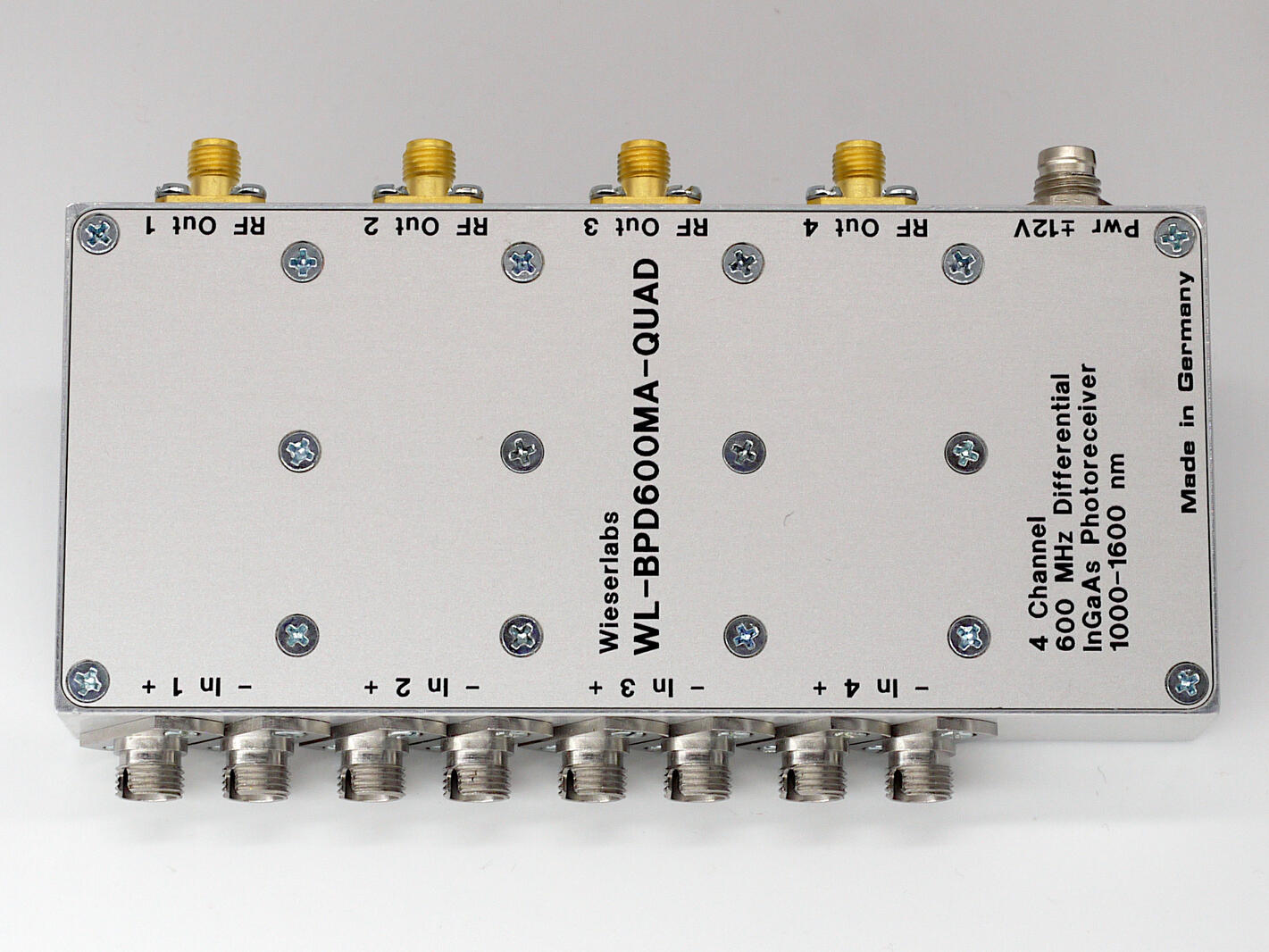

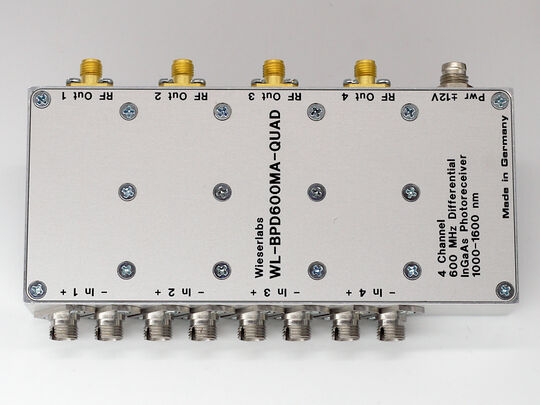

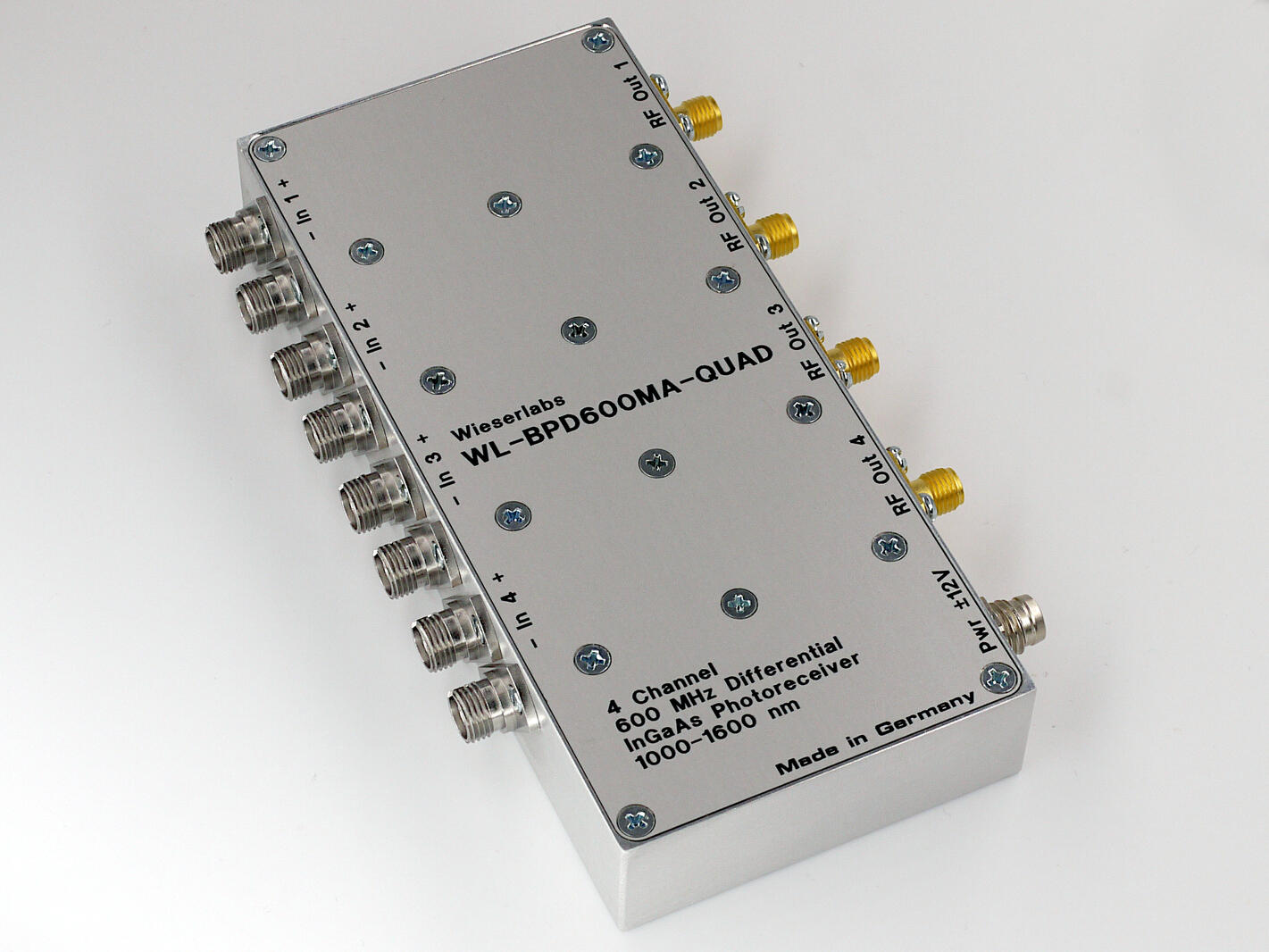

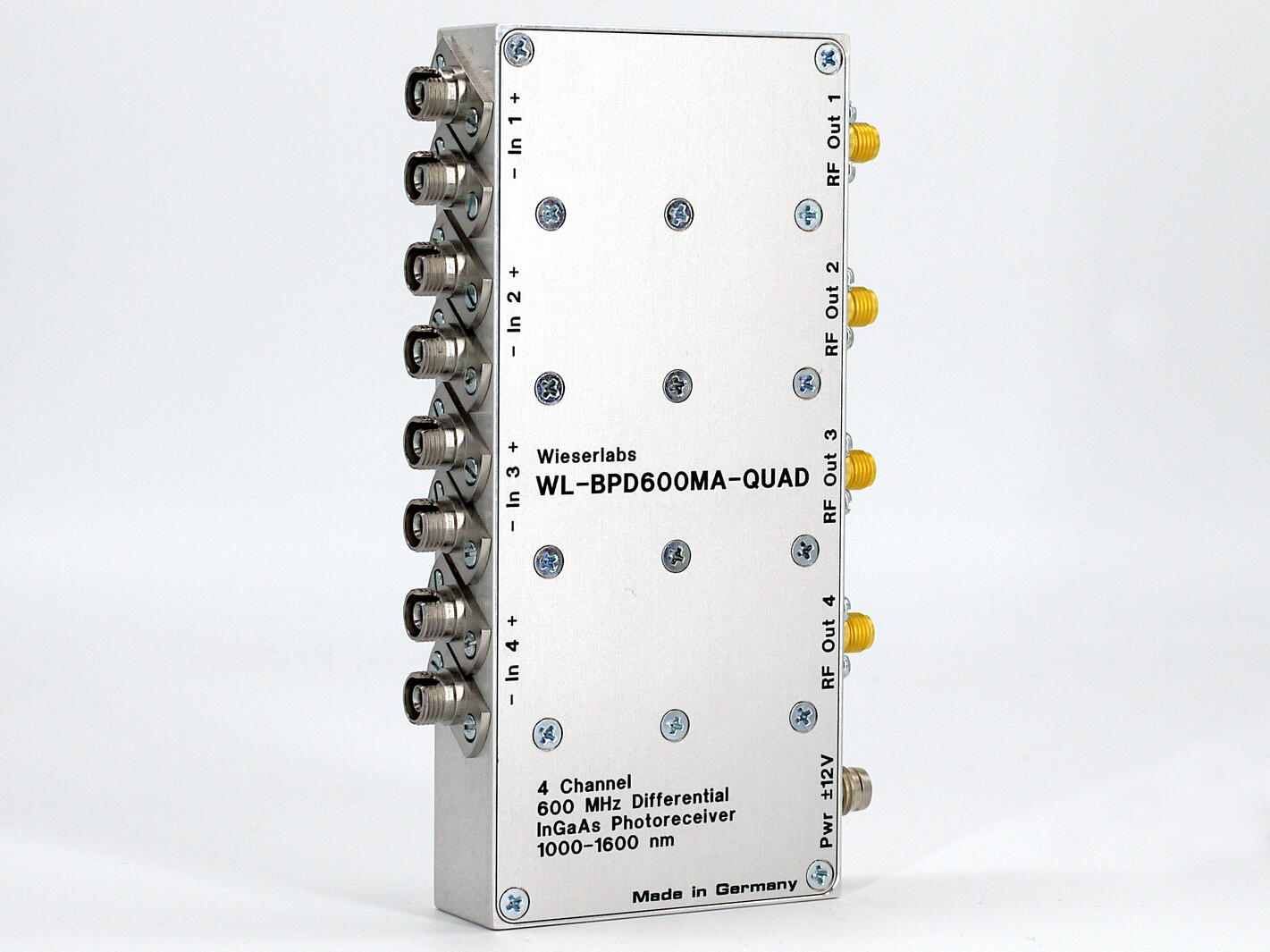

The BPD600MA-QUAD comes in a rugged aluminum case with 8 FC fiber receptables and four 50 Ω coupled SMA outputs. It operates from a dual 11-15 V DC supply.

Main Applications

  • Interferometry
  • Ultra-high speed SS-OCT imaging
  • Single-Ended Use Possible as Well


Bandwidth 30 kHz to 600 MHz (AC Cutoff 30 kHz to 5 MHz On Request)
High Transimpedance Gain5000 V/W (1550 nm)
Low NoiseTypically -130 dBm/Hz Noise Level
NEP 20 pW/sqrt(Hz) (at 1550 nm)
Wavelength Range1000 nm to 1700 nm
Power Supply11-15 V Dual Supply
InputFC Fiber Receptables
Output50 Ω Coupled SMA Plugs
Damage Threshold>15 mW
