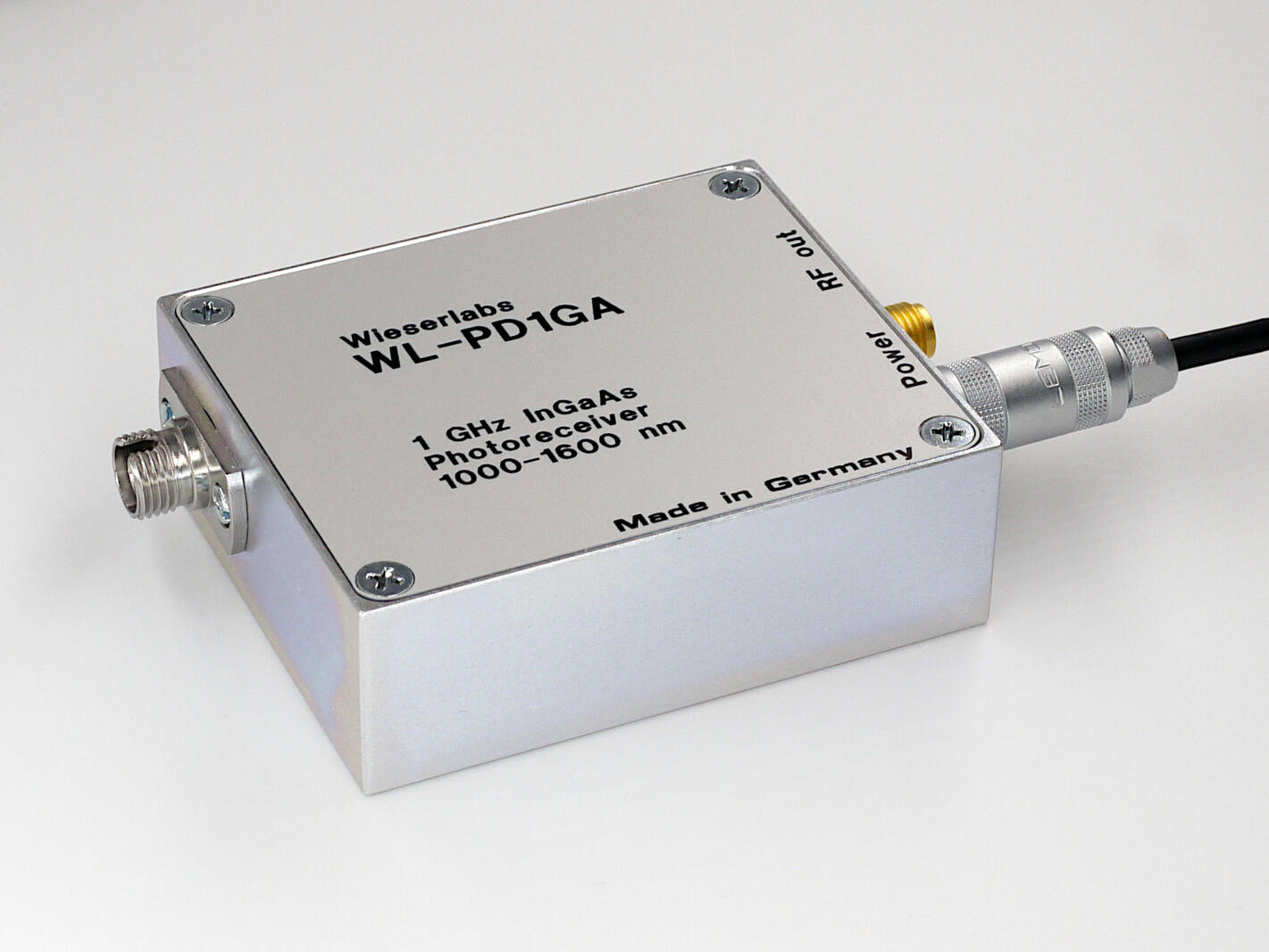

The PD1GA is an AC-coupled high-speed InGaAs photoreceiver. It features a high transimpedance gain, very low noise, and a -3 dB bandwidth of 1 GHz.
The PD1GA comes in a rugged aluminum case with an FC fiber receptable and a 50 Ω coupled SMA output. It operates from a single 11-15 V DC supply.
OEM versions without a case are available upon request.
| -3 dB Bandwidth | 300 kHz to 1 GHz |
| High Transimpedance Gain | 3000 V/W (1300 nm) |
| Low Noise | Typically -130 dBm/Hz Noise Level NEP 20 pW/sqrt(Hz) (at 1550 nm) |
| Wavelength Range | 1000 nm to 1650 nm |
| Power Supply | 11-15 V Single Supply |
| Input | FC Fiber Receptable |
| Output | 50 Ω Coupled SMA Plug |
| Damage Threshold | >15 mW |
| Competitive Pricing | Contact Us to Get a Quote |
WL-PD1GA, like many of our products, is regularly used to conduct scientific research all around the world. It has been mentioned in several renowned scientific publications:
