WL-PD600MA

600 MHz InGaAs Low Noise Photodetector

  Datasheet
600 MHz InGaAs Low Noise Photodetector
  In stock

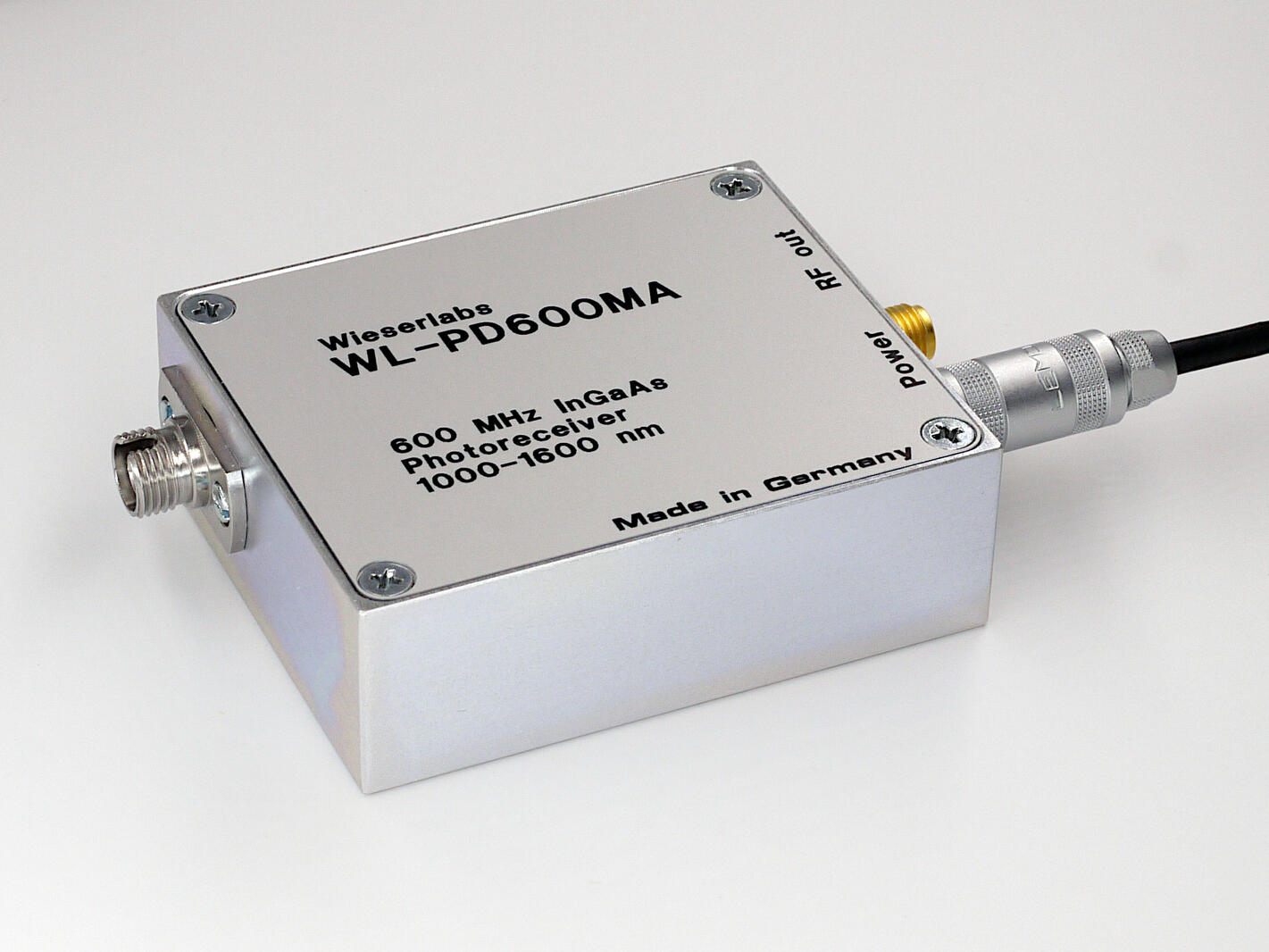

The PD600MA is an AC-coupled high-speed InGaAs photoreceiver. It features a high transimpedance gain, very low noise, and a -3 dB bandwidth of 600 MHz.

The PD600MA comes in a rugged aluminum case with an FC fiber receptable and a 50 Ω coupled SMA output. It operates from a single 11-15 V DC supply.

OEM versions without a case are available upon request.

Features

  • -3 dB bandwidth: 300 kHz to 600 MHz
  • High transimpedance gain: 3000 V/W (1300 nm)
  • Wavelength range: 1000 nm to 1700 nm
  • 11-15 V single supply
  • Input: FC fiber receptable
  • Output: 50 Ω coupled SMA plug
  • Damage threshold: >15 mW
  • Competitive pricing (contact us to get a quote)

Main Applications

  • Laser pulse monitoring
  • Noise measurements
