WL-BPD270MA5

270 MHz Dual-Balanced InGaAs Low Noise Photodetector

  Datasheet
WL-BPD270MA5 Photodetectors
  In stock

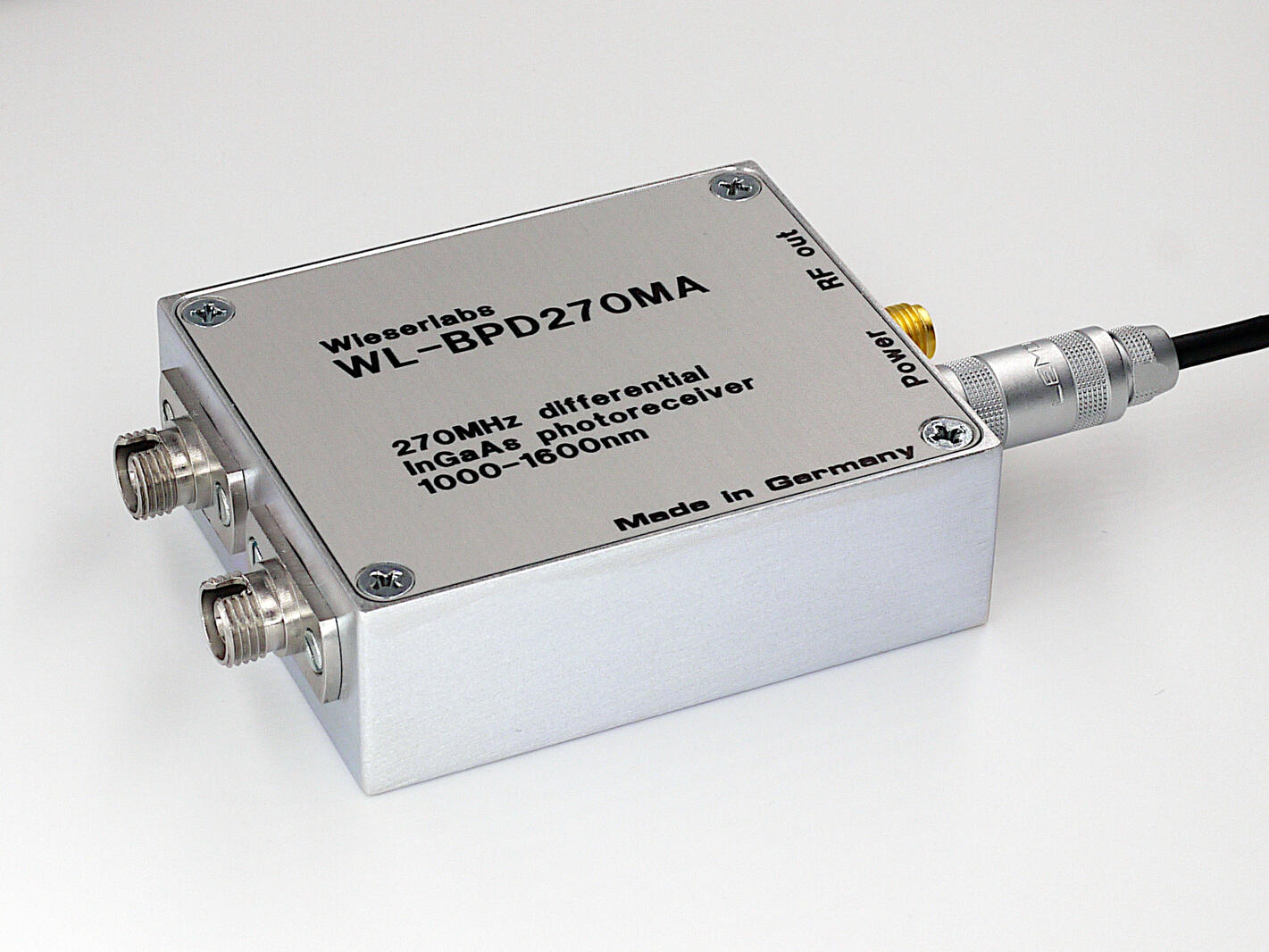

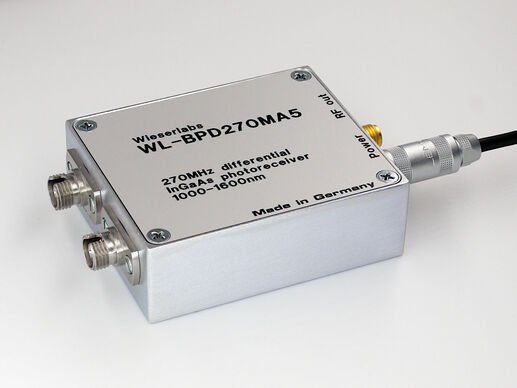

The BPD270MA5 is an AC-coupled high-speed dual-balanced InGaAs photoreceiver. It features a high transimpedance gain, very low noise and a -3 dB bandwidth of 270 MHz. The low frequency AC cutoff is set to >5 MHz to help suppress low frequency noise like acoustic vibrations.

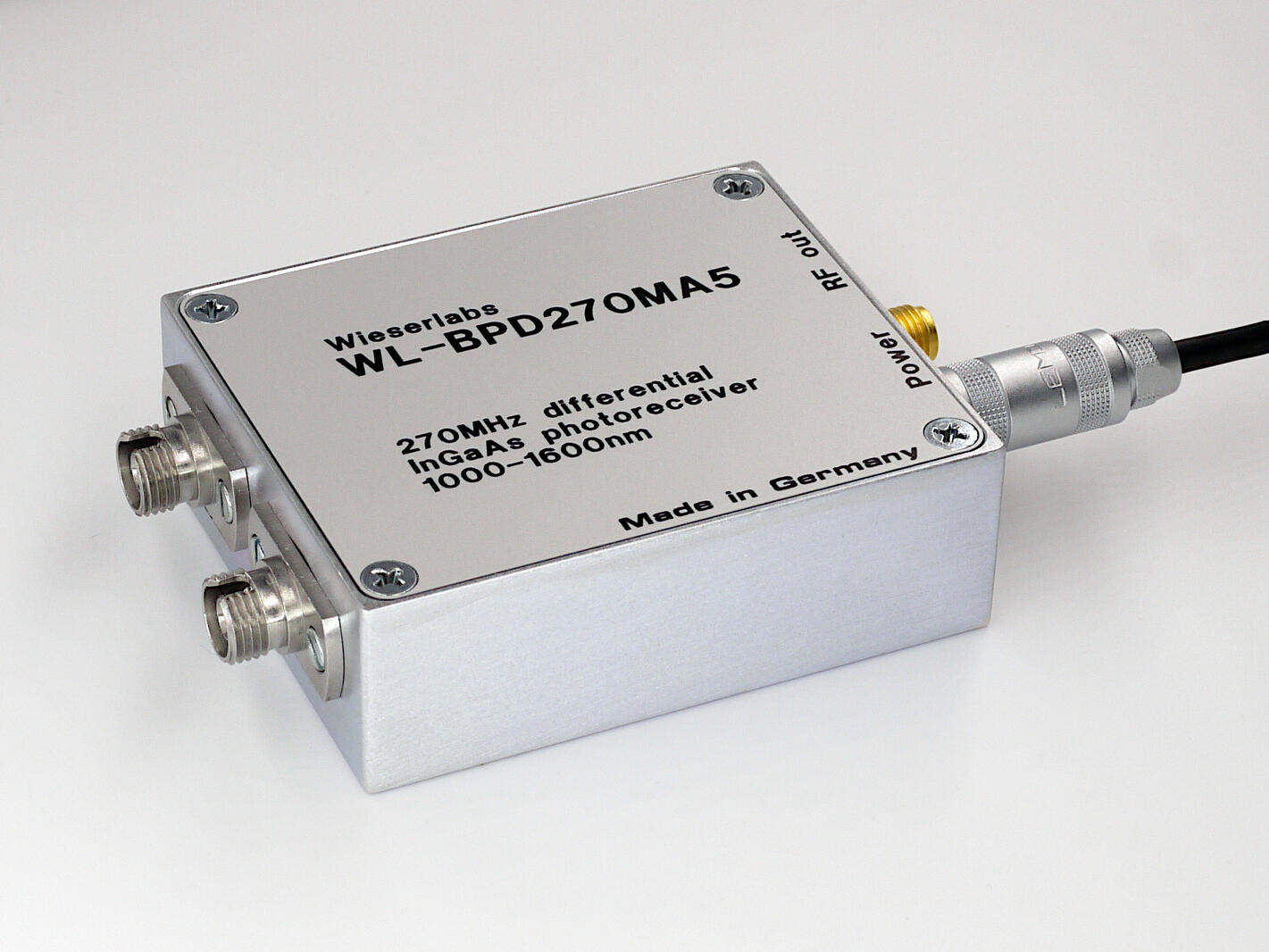

The BPD270MA5 comes in a rugged aluminum case with two FC fiber receptables and a 50 Ω coupled SMA output. It operates from a single 11-15 V DC supply.

OEM versions without a case are available upon request.

Features

  • Bandwidth: 5 MHz to 270 MHz
  • High transimpedance gain: 3500 V/W (1550 nm)
  • Low noise: Typically -130 dBm/Hz noise level
    NEP 20 pW/sqrt(Hz) (at 1550 nm)
  • Wavelength range: 1000 nm to 1700 nm
  • 11-16 V single supply
  • Input: FC fiber receptables
  • Output: 50 Ω coupled SMA plug
  • Damage threshold: >15 mW
  In stock

Main Applications

  • Interferometry
  • Single-ended use possible as well
